Developing a Mass-Produced Rust Embedded Product - 4 Leveraging Build Scripts

Table of Contents

WARN! This article is still a work in progress. Content may change at any time.

Before Reading
#

This post is a continuation of the previous post Part 3: Leave It to Compile Time, but focuses on build.rs rather than const fn/trait/impl.

If you are not familiar enough with Rust syntax, I recommend reading the #Studying-Rust section in the previous post Part 2: Study Methods and Key Characteristics. I also recommend the excellent article by Ki-O Kim, A Typical C Developer’s Journey into Rust: A Guide for C Developers Entering Rust.

Build Scripts (`build.rs`)
#

Just as C and C++ have Makefiles, Rust has Cargo. Cargo provides build.rs, which allows you to easily write scripts that run before compilation begins.

For detailed documentation on build.rs, see: The Cargo Book - Build Scripts

build.rs runs before compiling the source code in the src directory or external libraries. Importantly, even if you are developing code for no_std, build.rs can use libraries available on the host OS, including no_std and the alloc crate.

A separate program in main.rs must create const data at compile time, but there are cases where the functions and methods you need are not available in const form.

Fetching Strings with `build.rs` and `env!()`
#

Let us practice fetching a string (&str) at compile time using build.rs and the env!() macro.

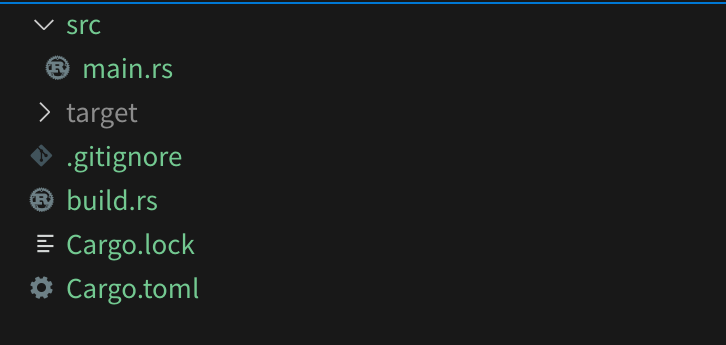

The project structure looks like this. build.rs is not in the src directory; it goes in the root directory of the project.

Cargo.toml Example
#

# End of Cargo.toml
[build-dependencies]
chrono = "0.4.31"

As mentioned above, build.rs can use libraries available for OS targets. If there is a crate you want to use, add it under build-dependencies below dependencies. Here we have added the chrono crate for our example.

build.rs Example
#

// build.rs
fn main() {
    let now = chrono::Utc::now().to_rfc3339();
    println!("cargo:rustc-env=GIVEN_BUILD_TIME={}", now);
}

When Cargo compiles and runs build.rs, it uses the chrono library to get the current time in UTC and converts it to a String.

Then it passes it to rustc (the compiler) as the “GIVEN_BUILD_TIME” environment variable via println!.

src/main.rs Example
#

// src/main.rs
const BUILD_TIME: &str = env!("GIVEN_BUILD_TIME");

fn main() {
    // if you working with firmware environment,
    // use defmt::info!(..) instead of println!(..)
    println!("passed build time is {}", BUILD_TIME);
    // "passed build time is 2023-11-14T06:14:02.366899222+00:00"
}

In src/main.rs, the “GIVEN_BUILD_TIME” environment variable is retrieved as a const &str using the built-in env!(..) macro.

The exact module path of env!(..) is core::env!(..), and core::env!(..) fetches environment variables at compile time. If you are developing for an OS target and want to get runtime environment variables or execution arguments rather than compile-time ones, you should use the items in the std::env module. Since you may end up using both when working with build.rs, be careful not to confuse them.

For detailed documentation on the env!() macro, see: https://doc.rust-lang.org/core/macro.env.html

Creating Fixed-Length Binary Data
#

Fetching with `include_bytes`
#

core::include_bytes can load a file from the project directory as binary data at compile time. https://doc.rust-lang.org/core/macro.include_bytes.html

Creating a Dummy Binary
#

echo -n "\x00\x01\x02\x03" >> ./src/stuff0123.bin

Create a dummy binary for our exercise. It is [0x00, 0x01, 0x02, 0x03], totaling 4 bytes, and is placed in the same location as main.rs.

In this post we create the dummy binary from the terminal, but it can also be done from build.rs.

src/main.rs Example
#

const DATA0123: &[u8; 4] = include_bytes!("stuff0123.bin");

fn main() {
    println!("binary data is {:?}", DATA0123);
}

In src/main.rs, the binary created earlier is fetched at compile time as const &[u8; 4]. Note that unlike fetching a &str above, you must specify the number of elements like [u8; N].

To fetch data without worrying about the number of elements, you need to use macros. This is covered later in this post.

Fetching Variable-Length Binary Data
#

`build.rs`	`src/**.rs`
`String`	`const &str`
`Vec<u8>`	`const [u8; N]`

In build.rs, data has variable-length characteristics, but when compiling for the target inside src/**.rs, you need the help of proc_macro. However, if the data size changes variably with each compilation and is not strictly controlled, it can be dangerous, so keep this in mind when using it.

Fetching Variable-Length Binary Data with proc-macro
#

There is also an approach of saving data to a tmp file and using include_bytes! with proc_macro, but the method introduced here uses env! together with proc_macro.

To explain proc_macro: in the past with C, you would use ## to concatenate tokens to generate code, or use compiler-specific features for black magic. Proc_macro brings in the concepts of tokens and parsers to enable reasonably stable metaprogramming through a macro system.

In Korean it is called procedural macros (jeolchahyeong maekeullo). If you master proc_macro and procedural macros, you can achieve excellent metaprogramming. I will write about this in more detail in a future post.

For the official detailed explanation of proc_macro, see: Procedural Macros

Overall Flow
#

stateDiagram-v2
    state "Total flow" as total_flow
    state "data prepare" as data_prepare
    state "hex::encode(..)" as hex_encode
    state "hex encoded" as hex_encoded
    state "passing to env" as passing_to
    state "passing from env" as passing_from
    state "proc_macro" as proc_macro
    state "decoding at build time" as decoding
    state "decoded data" as decoded_data
    state "code generation" as code_generation
    state "src/**.rs" as src_rs
    state "const NAME: [u8; N] = [...]" as const_u8_n

    state total_flow {
        [*] --> build.rs
        state build.rs {
            [*] --> data_prepare
            data_prepare --> hex_encode
            hex_encode --> hex_encoded
            hex_encoded --> passing_to
        }
        --
        state src_rs {
            passing_from --> proc_macro
            state proc_macro {
                [*] --> decoding
                decoding --> decoded_data
                decoded_data --> code_generation
            }
            proc_macro --> const_u8_n
        }
    }

The overall flow is as follows:

Prepare the data to inject in build.rs.
Encode it as hex and pass it as an environment variable to rustc.
In src/**.rs, receive the environment variable and pass it to a function created with proc_macro.
The macro function decodes the data at compile time and turns it into an array of the original data.
Generate const data as a code declaration with the specified name and the array length.

proc_macro Code for Decoding at Compile Time
#

To perform steps 4 and 5 described above, the following code is needed:

fn slice_to_auto_sized (
    arr_name: String,
    input: &[u8],
) -> TokenStream {
    format!(
        "const {}: [u8; {}] = [{}];",
        arr_name,
        input.len(),
        input.iter().join(", ")
    )
    .parse::<proc_macro2::TokenStream>()
    .expect("Failed to parse array")
    .into()
}

struct NameAndEnvInput {
    arr_name: syn::LitStr,
    _comma0: Token![,],
    env_var: syn::LitStr,
}

impl Parse for NameAndEnvInput {
    fn parse(input: syn::parse::ParseStream) -> syn::Result<Self> {
        Ok(Self {
            arr_name: input.parse()?,
            _comma0: input.parse()?,
            env_var: input.parse()?,
        })
    }
}

#[proc_macro]
pub fn c(inputs: TokenStream) -> TokenStream {
    let inputs = parse_macro_input!(inputs as NameAndEnvInput);
    slice_to_auto_sized(
        inputs.link_section_name.value(),
        inputs.arr_name.value(),
        hex::decode(std::env::var(inputs.env_var.value()).expect("This env not found"))
            .expect("Can't decode hex")
            .as_slice(),
    )
}

As an example, assume that slice_to_auto_sized!(SOME_DATA, GIVEN_ENV); is declared in main.rs.

In const_from_hex_env, it takes three tokens matching the structure of the NameAndEnvInput struct: “SOME_DATA”, a comma (,), and “GIVEN_ENV”. These tokens are passed to slice_to_auto_sized at the top, which generates the code to be produced.

The above code can be found in the forked env-to-array commit. The code there has been modified to create dummy sections for the linker, so it is slightly different.
This code is a slightly modified fork of the env-to-array crate.

Data Generation Example for Hex Encoding
#

fn main {
    // https://github.com/pmnxis/billmock-mptool/blob/master/otp-proof-of-concept/build.rs
    // (abbreviated)
    let fingerprint = MpFingerprint {
        firmware_fingerprint: FirmwareFingerprint {
            model_name: main_package.name.clone(), // reference package name temporary
            model_ver: feature_based_model_ver,
            firmware_ver: main_package.version.to_string(),
            firmware_git_hash: format!("{}", commit_hash),
        },
    };

    // cargo objdump --release -- -s --section .mp_fingerprint
    println!(
        "cargo:rustc-env=MP_FINGERPRINT_TOML_HEX={}",
        fingerprint.to_hex_string(),
    );
}

When encoding in hex style, you can use hex and encode with hex::encode().

The code above creates package information and a git hash in TOML format, then hex-encodes it.

Practical Applications
#

Application - Fetching EUC-KR Strings at Compile Time
#

use encoding_rs::EUC_KR;

fn main() {
    // encoding_rs::Encoding::encode(..) is not const fn
    let ret: &[u8] = EUC_KR.encode("안녕하세요").0.to_vec().as_slice();
}

While developing billmock-app-rs, I encountered several problems when creating an NDA financial institution protocol communication library. I needed to hold EUC-KR strings as const. However, the EUC-KR string encoding library encoding-rs does not provide const functions.

Since EUC-KR is ultimately a character encoding, under the assumption that the strings are predetermined, it is binary data that can be generated at compile time.

By combining the techniques introduced above, I wrote code in the financial institution protocol communication library that converts EUC-KR strings to const [u8; N] at compile time.

Application - Dummy ELF Header
#

During firmware development, when creating an MP Tool (Mass Production Tool) for flashing firmware in bulk, I inserted a dummy header into the ELF to prevent mistakes and record hardware version information. Since this dummy ELF header is data that is not actually loaded into flash, using variable-length data was no problem at all.

The overall structure is similar to what was described above in “Fetching Variable-Length Binary Data with proc-macro”.

Related commits are as follows:

Wrapping Up
#

This post is a continuation of the previous post Part 3: Leave It to Compile Time, but focused on build.rs rather than const fn/trait/impl. I covered how to handle fixed-length and variable-length data through build.rs and listed practical usage examples.

The topic of proc_macro (procedural macros) was too lengthy to explain in the middle of this post, so I plan to cover it in a future article.
